VDN.FP - Solid handwheels

VDN.FP

Solid handwheels

ELESA Original design

To download 2D/3D files log-in and select directly a code.

Remember me

Printable version

Add to my favourites

Technical information

Material

Reinforced phenolic based (PF) Duroplast, high resistance. Resistant to solvents, oils, greases and other chemical agents.

Colour

Black, glossy finish.

Ring

Matte anodised aluminium (VD- Industrial design IF 77 - ELESA original design).

Standard executions

Black-oxide steel hub, uncovered front end, with H7 reamed hole. See table for maximum permissible boring diameters d' and d".
- VDN.FP+I: with revolving handle type I.301+x in phenolic based (PF) Duroplast, black colour, glossy finish.
- VDN.FP+IR: with fold-away handle type IR.407 in phenolic based (PF) Duroplast, black colour, glossy finish.
- VDN.FP+IRS: with automatic fold-away safety handle "Fold-O-matic"® type IRS.820 in glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Accessories on request

Axial retaining washer type GN 184.

Special executions on request

- Hub with hole and keyway in compliance with DIN 6885/1 P9 tolerance .
To order the handwheel with keyway complete code and description with the index -K (i.e. 73710-10-K VDN.100 FP+I-A-10-K).
- Handwheels without handle.
- Handwheels with hub not drilled.
- Handlwheels with incorporated balancing counterweights.

Ergonomy

The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.

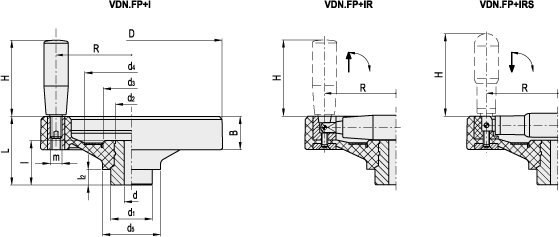

Standard Elements		Main dimensions														Max permissible holes				C #	L #	Weight
Code	Description	D	d_H7	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	H	m	R	d'	d"	t	b	[Nm]	[J]	g
73710-10	VDN.100 FP+I-A-10	100	10	51	26	24	20	35	54	39	33.5	12	50	M6	39	16	13	15.3	5	150	10	324
73710-12	VDN.100 FP+I-A-12	100	12	51	26	24	20	35	54	39	33.5	12	56	M6	39	16	13	15.3	5	150	10	324
73720-12	VDN.125 FP+I-A-12	125	12	57	28	32	24.5	44	70	46	38	15	65	M8	50	20	16	18.3	5	300	14	493
73720-14	VDN.125 FP+I-A-14	125	14	57	28	32	24.5	44	70	46	38	15	65	M8	50	20	16	18.3	5	300	14	493
73730-14	VDN.150 FP+I-A-14	150	14	60	30	32	24.5	50	80	48	38	15	65	M8	62	20	16	18.3	5	400	16	662
73730-16	VDN.150 FP+I-A-16	150	16	60	30	32	24.5	50	80	48	38	15	65	M8	62	20	16	18.3	5	400	16	662
73740-16	VDN.175 FP+I-A-16	175	16	66	32	40	31	55	90	56	43	15	80	M10	72.5	26	22	24.8	6	500	20	991
73740-18	VDN.175 FP+I-A-18	175	18	66	32	40	31	55	90	56	43	15	80	M10	72.5	26	22	24.3	6	500	20	991
73750-18	VDN.200 FP+I-A-18	200	18	68	32	40	31	55	90	60	43	15	90	M10	82	26	22	24.8	6	600	22	1196
73750-20	VDN.200 FP+I-A-20	200	20	68	32	40	31	55	90	60	43	15	90	M10	82	26	22	24.8	6	600	22	1196
73760-20	VDN.225 FP+I-A-20	225	20	71	33	49	38	66	110	66	44.5	15	90	M10	94	34	27	30.3	8	900	25	1590
73760-22	VDN.225 FP+I-A-22	225	22	71	33	49	38	66	110	66	44.5	15	90	M10	94	34	27	30.3	8	900	25	1590
73770-22	VDN.250 FP+I-A-22	249	22	75	36	49	38	66	110	70	44.5	15	90	M10	106	35	27	30.3	8	1000	35	1982
73770-24	VDN.250 FP+I-A-24	249	24	75	36	49	38	66	110	70	44.5	15	90	M10	106	35	27	30.3	8	1000	35	1982

# See Technical Data for maximum applicable torque (C) and impact strength (L).

Standard Elements		Main dimensions													Max permissible holes				C #	L #	Weight
Code	Description	D	d_H7	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	H	R	d'	d"	t	b	[Nm]	[J]	g
73711-10	VDN.100 FP+IR-A-10	100	10	51	26	24	20	35	54	39	33.5	12	56	37	16	13	15.3	5	150	10	357
73721-12	VDN.125 FP+IR-A-12	125	12	57	28	32	25.5	44	70	46	38	15	65	48	20	16	18.3	5	300	14	526
73731-14	VDN.150 FP+IR-A-14	150	14	60	30	32	24.5	50	80	48	38	15	65	57	20	16	18.3	5	400	16	695
73741-16	VDN.175 FP+IR-A-16	175	16	66	32	40	31	55	90	56	43	15	80	68	26	22	24.8	6	500	20	1020
73751-20	VDN.200 FP+IR-A-20	200	20	68	32	40	31	55	90	60	43	15	90	76.5	26	22	24.8	6	600	22	1270
73761-20	VDN.225 FP+IR-A-20	225	20	71	33	49	38	66	110	66	44.5	15	90	88	34	27	30.3	8	900	25	1664
73771-22	VDN.250 FP+IR-A-22	249	22	75	36	49	38	66	110	70	44.5	15	90	100	35	27	30.3	8	1000	35	2056

# See Technical Data for maximum applicable torque (C) and impact strength (L).

Standard Elements		Main dimensions													Max permissible holes				C #	L #	Weight
Code	Description	D	d_H7	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	H	R	d'	d"	t	b	[Nm]	[J]	g
73732-14	VDN.150 FP+IRS-A-14	150	14	60	30	32	24.5	50	80	48	38	15	65	57	20	16	18.3	5	400	16	660
73742-16	VDN.175 FP+IRS-A-16	175	16	66	32	40	31	55	90	56	43	15	80	68	26	22	24.8	6	500	20	973
73752-20	VDN.200 FP+IRS-A-20	200	20	68	32	40	31	55	90	60	43	15	90	74.5	26	22	24.8	6	600	22	1165
73762-20	VDN.225 FP+IRS-A-20	225	20	71	33	49	38	66	110	66	44.5	15	90	86	34	27	30.3	8	900	25	1559
73772-22	VDN.250 FP+IRS-A-22	249	22	75	36	49	38	66	110	70	44.5	15	90	98	35	27	30.3	8	1000	35	1951

# See Technical Data for maximum applicable torque (C) and impact strength (L).
